Cnomax Industrial Lens Selection Guide: A Step-by-Step Approach to Choosing the Right Lens

In today's thriving era of smart manufacturing and machine vision technology, selecting the appropriate industrial lens is crucial for enhancing system performance and ensuring image quality. As a renowned brand in the field of industrial lenses, Cnomax products are widely used in automated inspection, quality control, robot navigation, and many other areas. This guide will provide a detailed introduction to the steps for selecting Cnomax industrial lenses, helping you easily choose the right one.

I. Clarify Application Requirements

Before selection, it is essential to clarify the application requirements, which serve as the starting point for lens selection. Specifically, the following key points need to be considered:

  1. Inspection Object: Understand the size, shape, material, and surface characteristics (such as reflectivity, transparency, etc.) of the target. For example, high-resolution, low-distortion lenses may be required for the inspection of tiny electronic components.

  2. Working Distance: Determine the range of distance between the lens and the object. Different working distances have different requirements for lens focal length and field of view (FOV).

  3. Resolution Requirements: Determine the resolution required by the system based on the inspection accuracy needs. The resolution of the lens should match or exceed that of the camera to ensure image quality.

  4. Environmental Conditions: Consider external factors such as temperature, humidity, vibration, and choose the appropriate protection level and material. For example, in high-temperature environments, lenses made of high-temperature-resistant materials may be needed.

II. Determine Lens Parameters

After clarifying the application requirements, the next step is to determine the key parameters of the lens:

  1. Focal Length: Focal length is one of the core parameters in lens selection, directly affecting the field of view (FOV) and working distance. It can be estimated using the formula f = WD × H / H_sensor, where f is the focal length, WD is the working distance, H is the target height, and H_sensor is the sensor height.

  2. Aperture: The size of the aperture directly affects the amount of light entering the lens and the depth of field. A large aperture is suitable for low-light environments but has a shallow depth of field; a small aperture is suitable for high-light environments and has a larger depth of field. The choice should be based on lighting conditions and inspection needs.

  3. Field of View: Calculate the required field of view based on the size of the inspection target and the working distance. The larger the field of view, the wider the range the lens can capture.

  4. Resolution: Ensure that the resolution of the lens meets the system requirements. It is usually expressed in line pairs per millimeter (lp/mm), and the resolution of the lens should be higher than that of the camera.

  5. Distortion: Choose a lens with low distortion, especially for high-precision measurement scenarios. Distortion can affect the accuracy and reliability of the image.

III. Select Lens Type

Choose the appropriate lens type based on the application scenario:

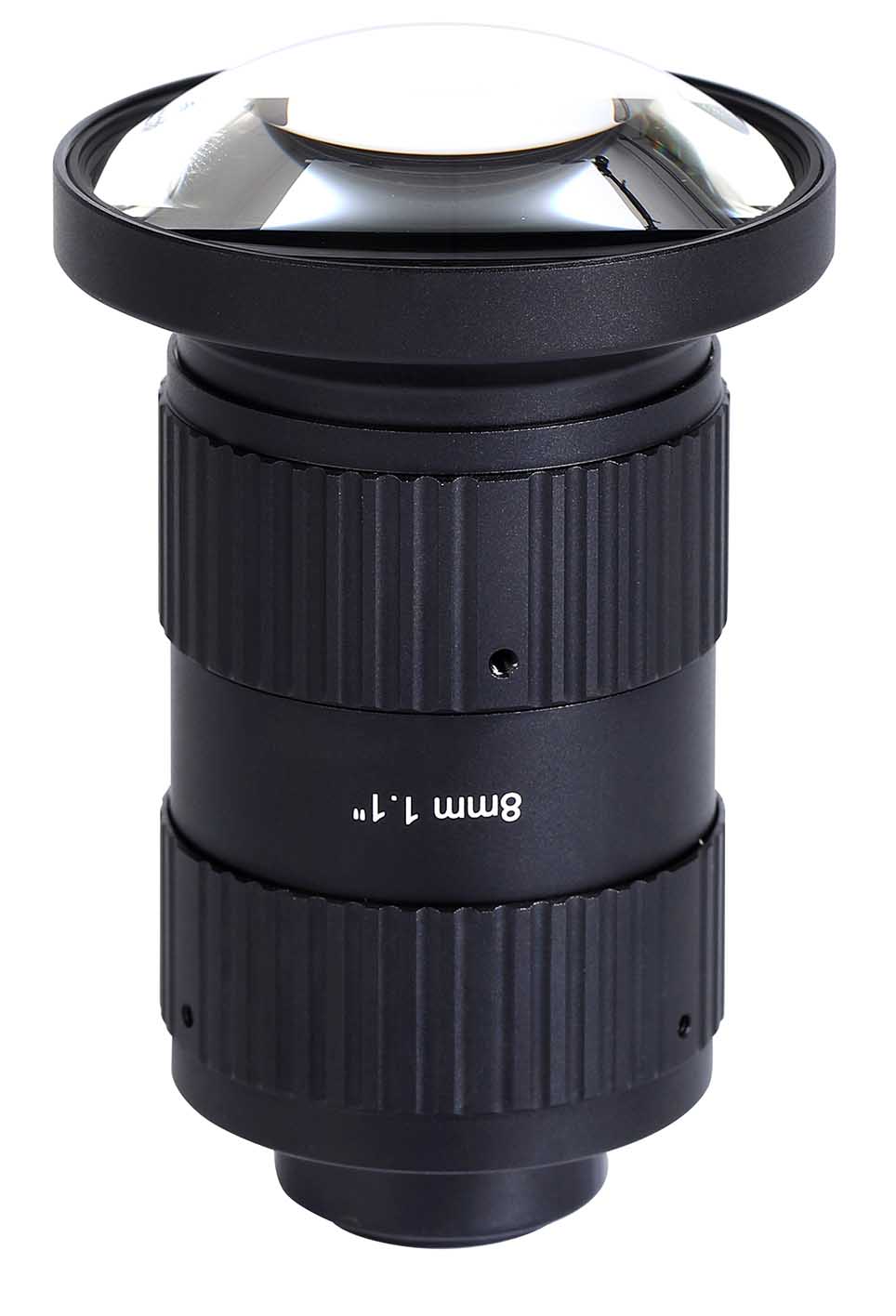

  1. Fixed Focal Length Lens: With a fixed focal length and excellent optical performance, it is suitable for scenarios with fixed working distances and fields of view. Fixed focal length lenses are cost-effective and suitable for applications with limited budgets or high image quality requirements.

  2. Zoom Lens: With an adjustable focal length, it offers high flexibility and is suitable for scenarios where the field of view or working distance needs to be adjusted flexibly. However, zoom lenses are more expensive and may have some loss in optical performance.

  3. Telecentric Lens: A specially designed lens that can reduce perspective errors and is suitable for high-precision dimensional measurements. Telecentric lenses are expensive but offer high measurement accuracy and are suitable for applications with extremely high accuracy requirements.

IV. Consider Other Factors

In addition to the key parameters mentioned above, the following factors also need to be considered:

  1. Interface Type: Ensure that the lens interface matches the camera interface. Common interfaces include C-mount, CS-mount, F-mount, etc.

  2. Size and Weight: Consider the installation space and mechanical stability. A lens that is too large or heavy may affect the operational stability and service life of the system.

  3. Cost: Choose a cost-effective lens while meeting performance requirements. Cost is an important factor to consider during selection.

  4. Lead Time: Ensure that the lens lead time meets the project timeline requirements. Avoid delays in the entire project due to late delivery of the lens.

V. Testing and Verification

After the selection is complete, testing and verification need to be conducted in the actual environment:

  1. Image Quality: Check the clarity, contrast, and distortion of the image. Ensure that the image quality meets the application requirements.

  2. Stability: Observe the performance of the lens during long-term operation. Ensure that the lens can work stably and meet the needs of long-term use.

  3. Adjustment and Optimization: Adjust parameters or replace models based on test results. If the lens performance does not meet the requirements, timely adjustments or replacements are needed.

VI. Advantages of Cnomax Industrial Lenses

Choosing Cnomax industrial lenses has the following advantages:

  1. High-Quality Imaging: Cnomax industrial lenses adopt high-precision optical elements and advanced optical design technology, providing high-quality imaging effects.

  2. Rich Model Selection: Cnomax industrial lenses offer a wide range of models, including fixed focal length, zoom, telecentric, and other types, meeting the needs of different application scenarios.

  3. Cost-Effective: While ensuring high performance, Cnomax industrial lenses offer competitive prices, providing high cost-effectiveness.

  4. Excellent Service: Cnomax provides excellent pre-sales and after-sales services, including technical support, installation and commissioning, maintenance, and repairs, ensuring that customers can easily use the lenses and solve problems.

VII. Conclusion

Choosing the right industrial lens is crucial for enhancing system performance and ensuring image quality. By following the steps of clarifying application requirements, determining lens parameters, selecting lens types, considering other factors, and conducting testing and verification, you can easily choose the right Cnomax industrial lens. With its advantages of high-quality imaging, rich model selection, cost-effectiveness, and excellent service, Cnomax industrial lenses have been widely used and recognized in the fields of smart manufacturing and machine vision.
