Are industrial lenses waterproof ?

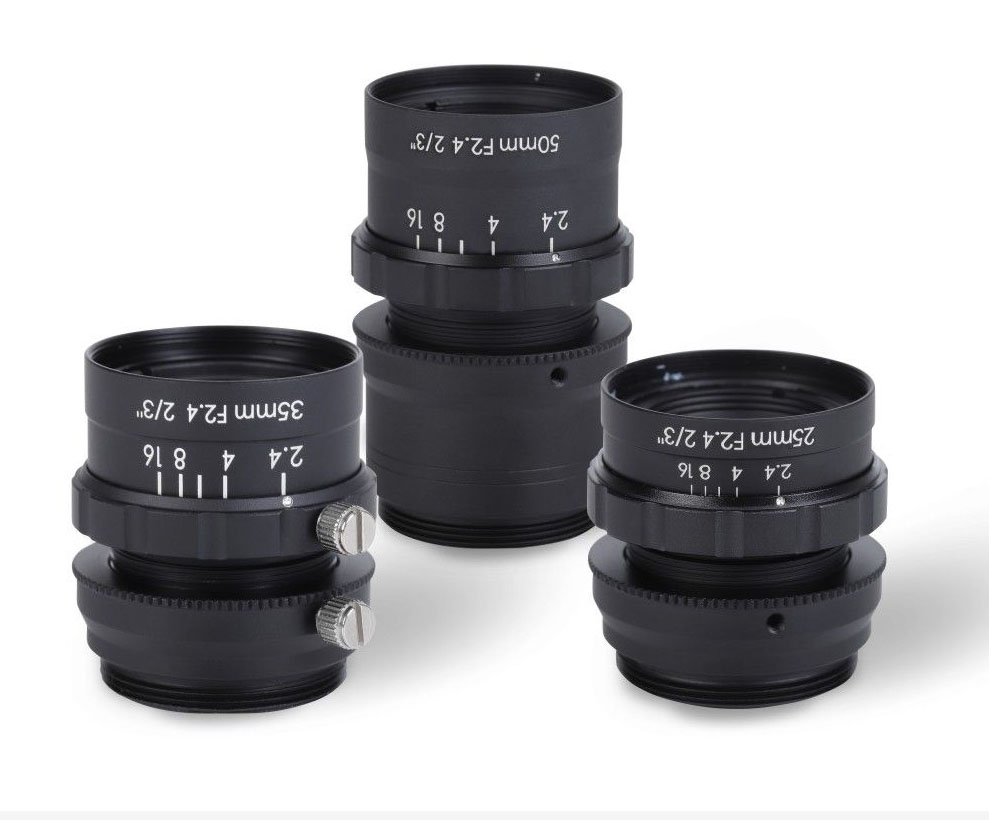

Comprehensive Analysis of Waterproof Performance and Protection Technologies for Industrial Lenses

1. Waterproof Standards for Industrial Lenses

1.1 International Protection (IP) Rating System

The waterproof capability of industrial lenses is quantified by the IP (Ingress Protection) ratingsystem,For example:

  • IP67:

      • First digit "6": Complete dust protection (no ingress of particulates)

      • Second digit "7": Water immersion resistance (1m depth for 30 minutes)

  • Higher ratings:

      • IP68: Submersion beyond 1.5m depth

      • IP69K: Protection against high-pressure steam/water jets

1.2 Waterproof Requirements by Application

2. Core Waterproof Technologies

2.1 Structural Sealing Designs

  1. Multi-stage sealing systems:

      • O-ring silicone gaskets: Applied at lens-housing joints with 15%-25% compression ratio for optimal sealing

      • Labyrinth groove structures: Block liquid ingress through tortuous paths, commonly used in articulating probes

      • Laser welding: Precision welding with >100 weld points, achieving hermeticity of 10⁻⁶ Pa·m³/s

  2. Dynamic component protection:

      • Perfluoropolyether (PFPE) grease: Lubricates mechanical parts (-40℃~200℃ operating range)

      • Magnetic waterproof connectors: Maintain <0.1Ω contact resistance over 5,000 insertion cycles

2.2 Material Innovations

  • Housing materials: 316L stainless steel (pH 2-12 corrosion resistance) or titanium alloys (800MPa tensile strength)

  • Optical coatings:Magnesium fluoride hydrophobic layerswith >110° contact angle to minimize fogging

  • Cable sheathing: Polyurethane/PVC composites with >150N/mm² tensile strength and oil resistance

2.3 Manufacturing Quality Control

  • Helium mass spectrometry leak detection: Sensitivity up to 5×10⁻⁸ mbar·L/s for micron-level defect identification

  • Thermal cycling tests: Validate seal integrity through 100 cycles of -40℃~85℃ temperature shocks

3. Application Strategies

3.1 Selection Guidelines

  1. Environmental assessment:

      • Quantify liquid type (water/oil/acid), temperature, pressure, and exposure duration

      • Example: Brewery fermentation tank inspection requires IP69K+316L stainless steel lenses for 85℃ hot water and pH4.5 environments

  2. Dynamic compensation:

      • Pressure equalization valves: Prevent seal failure in underwater operations

      • Self-cleaning lens covers: Mechanical wipers remove particulates in slurry environments

3.2 Operational Protocols

  • Pre-inspection: Remove surface burrs to prevent seal damage

  • Underwater deployment: Limit descent speed to ≤0.5m/s to avoid pressure shocks

  • Emergency response: Use 99% pure nitrogen purging if water intrusion occurs

4. Technical Challenges & Innovations

4.1 Current Limitations

  • Miniaturization tradeoffs: Φ3mm micro-lenses exhibit 40% reduced seal strength

  • Extreme environments: Silicone seals degrade above 150℃

4.2 Emerging Solutions

  • Smart monitoring: MEMS humidity sensors for real-time internal dew point tracking

  • Self-healing materials: Microencapsulated silane compounds automatically repair seal cracks

  • Biomimetic surfaces: Lotus-leaf-inspired superhydrophobic coatings (>160° contact angle)

5. Case Studies

5.1 Ship Ballast Tank Inspection

IP68-rated 8mm borescopes identified 3 corroded welds at 10m depth during 4-hour operations.

5.2 Geothermal Pipeline Monitoring

IP67 lenses withstood pH3.5 acidic steam at 150℃ for 5-year service in Icelandic geothermal plants.

Conclusion:Industrial lenses achieve IP67-IP69K waterproofing throughmaterial engineering,structural optimization, andprecision manufacturing. Users must select appropriate solutions based on operational demands while adhering to maintenance protocols. Future advancements inactive protectionandself-repairtechnologies will further expand industrial imaging capabilities
