Industrial Lenses: A Buying Guide and Basic Knowledge

Industrial Lenses: A Buying Guide and Basic Knowledge

In the realm of industrial applications, lenses are indispensable optical components that play a crucial role in various systems, including machine vision, industrial inspection, quality control, and more. Understanding the basics of industrial lenses and how to choose the right one for your specific needs is essential for achieving optimal performance and efficiency. This guide will delve into the fundamentals of industrial lenses, provide a comprehensive buying guide, and discuss key considerations when making a purchase.

Introduction to Industrial Lenses

Industrial lenses are designed to meet the stringent requirements of industrial imaging systems. They are characterized by high resolution, high contrast, and excellent optical performance, which are critical for tasks such as image acquisition, measurement, and analysis. Unlike conventional lenses used in photography or everyday applications, industrial lenses are engineered with robust materials and advanced optical designs to ensure reliability and accuracy in demanding environments.

Types of Industrial Lenses

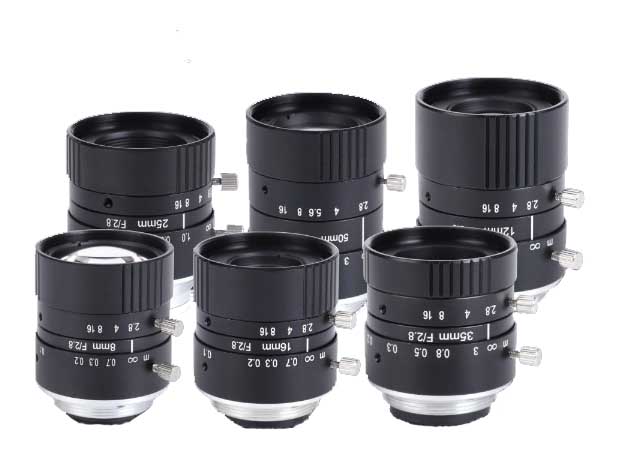

  1. Fixed Focal Length Lenses (Prime Lenses)

Fixed focal length lenses, as the name suggests, have a fixed focal length. This means that the field of view and magnification ratio remain constant once the lens is installed. They are ideal for applications that require a fixed viewing distance and field of view, such as machine vision systems where the target object's position and distance are known and consistent.

Advantages:

  • Simpler optical design, often leading to better image quality.

  • Lower cost compared to zoom lenses.

  • No moving parts, reducing the risk of mechanical failures.

Disadvantages:

  • Limited flexibility; not suitable for applications requiring variable viewing distances.

  2. Zoom Lenses

Zoom lenses offer the ability to adjust the focal length, thereby changing the field of view and magnification ratio. They are useful in applications where the distance to the target object varies or when a wider range of viewing angles is required.

Advantages:

  • Increased flexibility and adaptability.

  • Can cover a wider range of applications with a single lens.

Disadvantages:

  • More complex optical design, potentially leading to lower image quality.

  • Higher cost compared to fixed focal length lenses.

  • Moving parts can increase the risk of mechanical failure.

  3. Macro Lenses

Macro lenses are specialized for capturing close-up images of small objects with high magnification. They are commonly used in industries such as electronics, precision engineering, and biomedical research where the inspection of minute details is crucial.

Advantages:

  • Extremely high magnification capabilities.

  • Excellent image quality for close-up shots.

Disadvantages:

  • Limited field of view due to high magnification.

  • Not suitable for long-distance imaging.

  4. Fisheye Lenses

Fisheye lenses provide an extremely wide field of view, typically超过180 degrees, allowing the capture of nearly hemispherical images. They are used in applications where a wide area needs to be monitored, such as in surveillance systems, environmental monitoring, and certain types of machine vision applications.

Advantages:

  • Extremely wide field of view.

  • Useful for panoramic imaging.

Disadvantages:

  • Significant barrel distortion, requiring image correction.

  • Reduced image quality towards the edges of the field of view.

Key Parameters to Consider When Buying Industrial Lenses

  1. Focal Length

The focal length determines the field of view and magnification ratio of the lens. A shorter focal length results in a wider field of view and a smaller magnification ratio, while a longer focal length provides a narrower field of view and a higher magnification ratio.

  2. Aperture (Iris)

The aperture controls the amount of light entering the lens, affecting both the exposure and depth of field. A larger aperture (smaller F-number) allows more light in, resulting in a shallower depth of field and potentially brighter images, but can also lead to issues such as vignetting and chromatic aberration. Conversely, a smaller aperture (larger F-number) provides a deeper depth of field but may require longer exposure times.

  3. Field of View (FOV)

The field of view is the angular extent of the observable world that is seen through the lens. It is determined by the focal length and the sensor size of the camera. A wider field of view captures more of the scene, but can also introduce distortion, especially with fisheye lenses.

  4. Working Distance

The working distance is the distance from the front of the lens to the object being imaged. It is crucial in applications where the lens must be positioned at a specific distance from the target object.

  5. Resolution

Resolution refers to the lens's ability to resolve fine details in the image. It is typically measured in line pairs per millimeter (lp/mm) and is critical for applications that require high image quality and accuracy, such as precision measurement and inspection.

  6. Depth of Field

The depth of field is the distance in front of and behind the subject that appears acceptably sharp in the image. It is influenced by the aperture, focal length, and sensor size. A larger aperture or longer focal length results in a shallower depth of field.

  7. Lens Mount

The lens mount is the interface between the lens and the camera. It is important to ensure compatibility between the lens and the camera being used. Common lens mounts for industrial applications include C-mount, CS-mount, F-mount, and M42x1 mount.

  8. Distortion

Distortion is a common issue in lenses, especially wide-angle lenses. It can be corrected to some extent through software algorithms, but it's important to consider the level of distortion when choosing a lens for specific applications.

Buying Guide: Factors to Consider When Selecting an Industrial Lens

  1. Application Requirements

The first step in selecting an industrial lens is to understand the specific requirements of your application. Consider factors such as the size of the object being imaged, the required field of view, the working distance, the desired resolution, and any special features or constraints (e.g., need for zoom capability, environmental conditions).

  2. Compatibility with the Camera System

Ensure that the lens is compatible with the camera system you are using. This includes factors such as the lens mount, sensor size, and pixel pitch.

  3. Budget and Cost-Effectiveness

While it's important to consider the cost of the lens, it's equally important to ensure that it meets the performance requirements of your application. In some cases, investing in a higher-quality lens may lead to long-term cost savings through improved efficiency and accuracy.

  4. Brand and Reputation

Choosing a reputable brand with a proven track record of producing high-quality lenses can provide peace of mind and reduce the risk of encountering issues such as poor image quality, mechanical failures, or compatibility issues.

  5. Technical Support and Service

Consider the level of technical support and after-sales service offered by the lens manufacturer. This can be particularly important in industrial applications where downtime can be costly.

  6. Demo and Evaluation

If possible, request a demo or evaluation unit to test the lens in your specific application. This can help you assess its performance and ensure that it meets your expectations before making a final purchase.

Conclusion

Industrial lenses are critical components in various industrial applications, and choosing the right one requires a thorough understanding of the basics and careful consideration of the specific requirements of your application. By understanding the types of lenses available, the key parameters to consider, and the factors involved in the selection process, you can make an informed decision that will contribute to the success of your industrial imaging system.

In summary, industrial lenses are highly specialized optical components that play a vital role in various industries. By understanding the fundamentals of Cnomax industrial lenses and the factors involved in the buying process, you can select the most appropriate lens for your specific application, ensuring optimal performance and efficiency.
