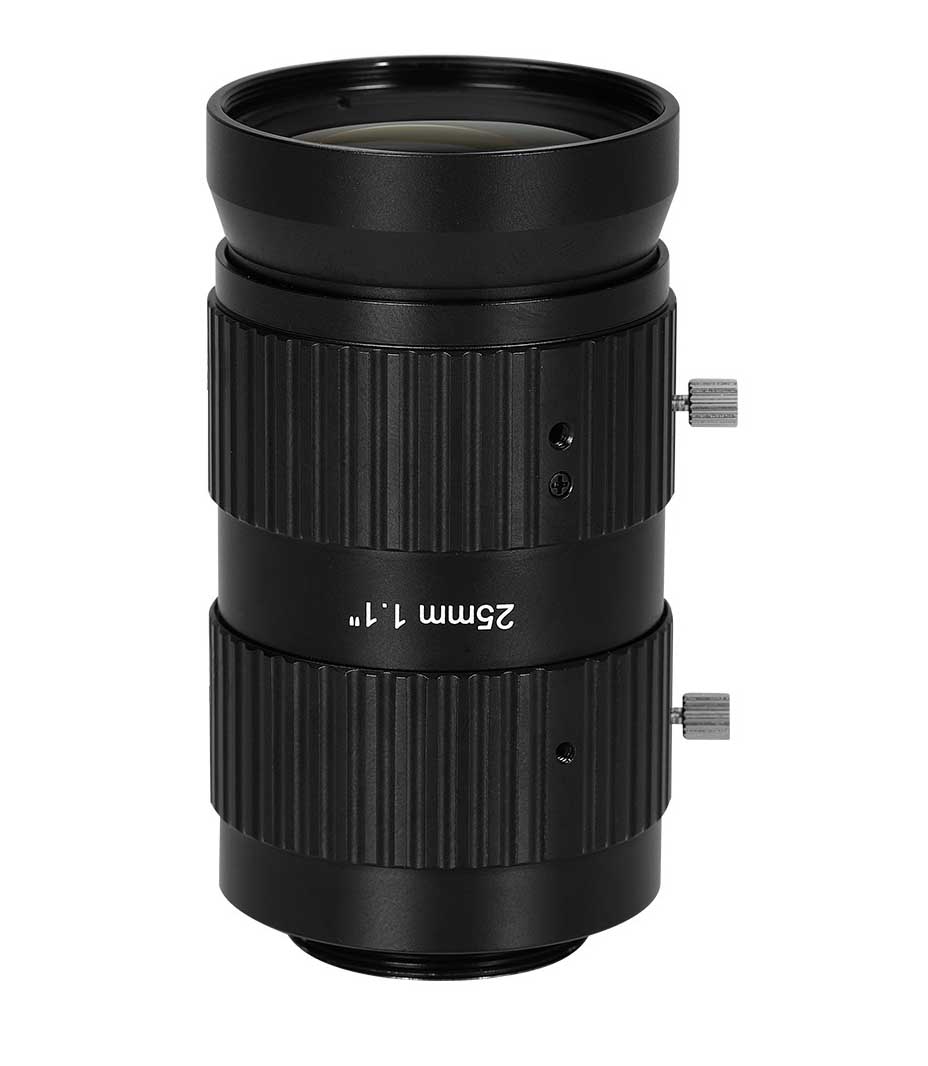

1.1 Inch 20MP Industrial Lens Details Specification List

Our company's 20MP industrial lens is a high-performance, high-resolution industrial lens with ultra-low distortion design and low distortion rate. It is widely used in industrial safety monitoring, high-precision measurement, detection, recognition and other industrial machine vision and image processing systems.

High relative illumination and high contrast, sharp imaging Low distortion, overall distortion <0.5%, minimum distortion <0.1% Excellent resolution, center 200IP / mm, peripheral 160IP / mm Compatible with 1 inch 20 million and 1.1 inch 12 million chips

We have all kinds of type for your choose ! If you need more details drawing,Please feel free to contact us!

Email: [email protected]

Model	Flange Distance(mm)	Iris(F/#)	Working Distance(mm)	Distortion(%)	Relative IIIumination(%)	Filter Screw Size	Format Size(")	Mount	Download Details
CNV0820M	8	2.4-16	100-INF.	<1.0	>65	M82*P0.75 (can increase)	1.1	c
CNV1220M	12	2.4-16	100-INF.	<0.5	>70	M49*P0.75 (can increase)	1.1	C
CNV1620M	16	2.4-16	100-INF.	<0.3	>65	M40.5*P0.5	1.1	c

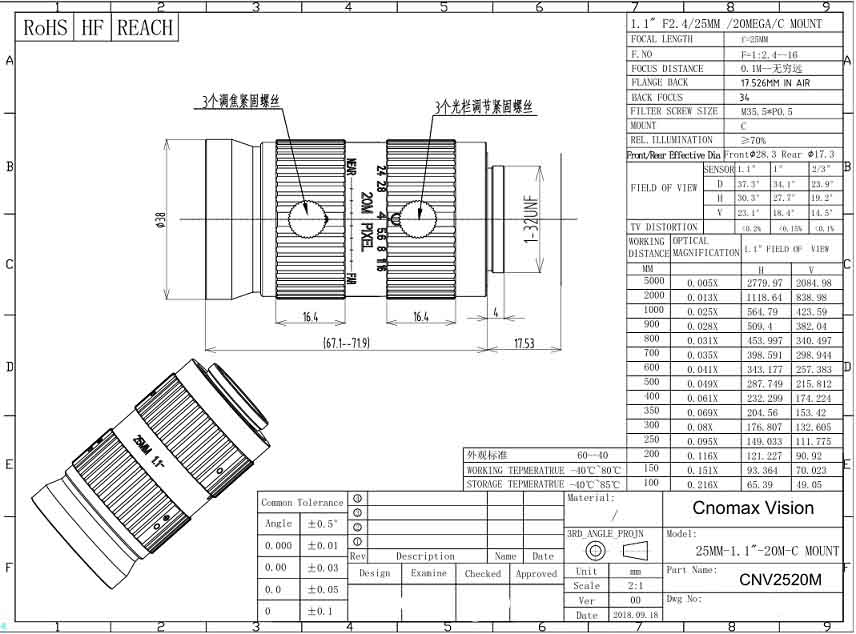

CNV2520M	25	2.4-16	100-INF	<0.2	>70	M35.5*P0.5	1.1	C
CNV3520M	35	2.4-16	200-INF.	<0.1	>70	M35.5*P0.5	1.1	c
CNV5020M	50	2.4-16	300-INF.	<0.1	>70	M40.5*P0.5	1.1	c
