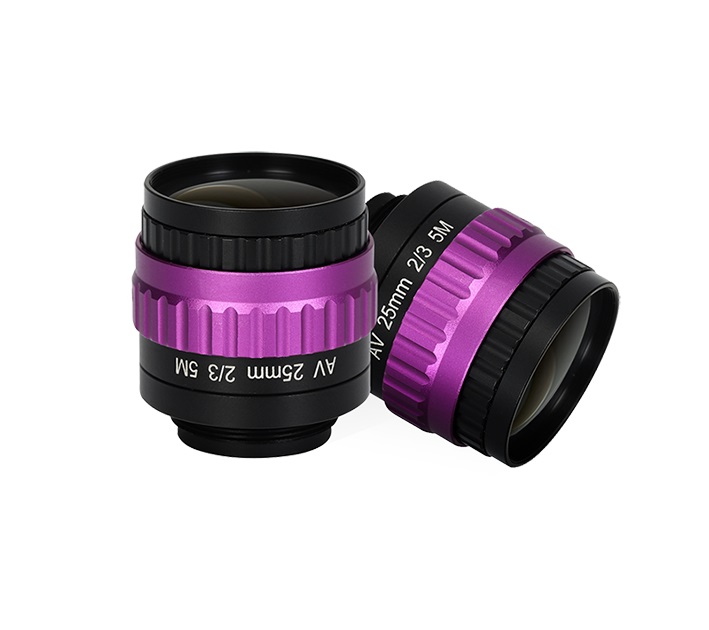

2/3 Inch 5MP Anti vibration lens Details Specification List

Our company's Anti vibration lens lens is a high-performance, high-resolution industrial lens with ultra-low distortion design and low distortion rate. It is widely used in industrial safety monitoring, high-precision measurement, detection, recognition and other industrial machine vision and image processing systems.

Fixed aperture value optional Anti-vibration ring design, the lens structure is more stable Low image shift at vibration situation Suitable for multiple vibration environments

We have all kinds of type for your choose ! If you need more details drawing,Please feel free to contact us!

Email: [email protected]

Model	Flange Distance(mm)	Iris(F/#)	Working Distance(mm)	Distortion(%)	Relative IIIumination(%)	Filter Screw Size	Format Size(")	Mount	Download Details
CNAV085M	8	1.6-16	100-1500	<0.3	>70	M35.5*P0.5	2/3	c
CNAV125M	12	1.6-16	100-1500	<0.15	>70	M30.5*P0.5	2/3	C
CNAV165M	16	1.6-16	100-1500	<0.1	>70	M30.5*P0.5	2/3	c
CNAV255M	25	1.6-16	100-1500	<0.1	>76	M30.5*P0.5	2/3	C
CNAV355M	35	1.6-16	150-1500	<0.15	>76	M30.5*P0.5	2/3	C
CNAV505M	50	2.0-16	300-INF.	<0.05	>76	M30.5*P0.5	2/3	C
