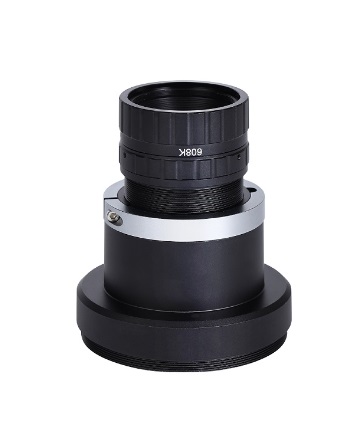

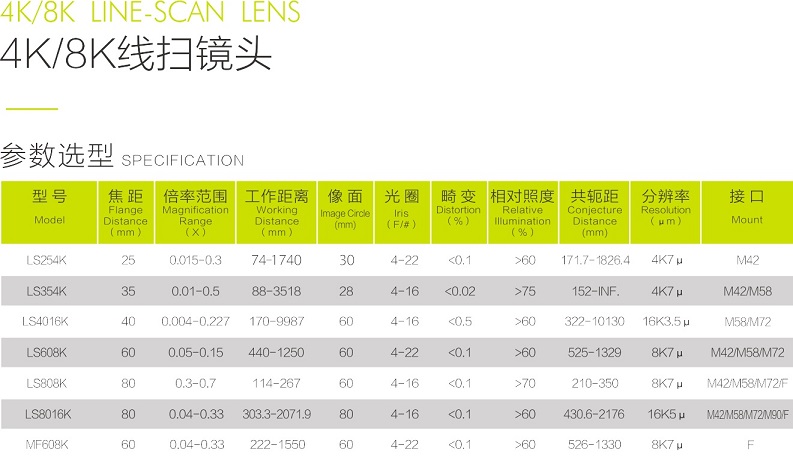

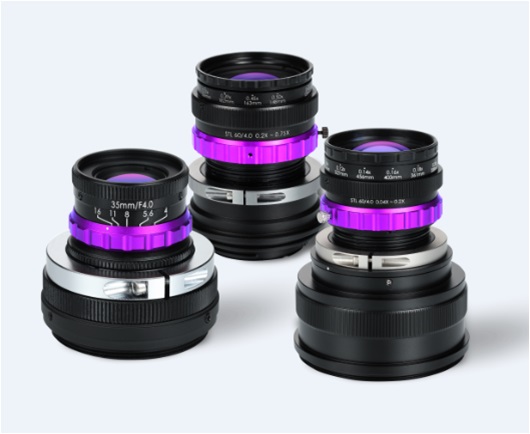

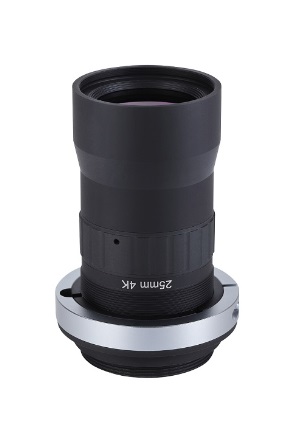

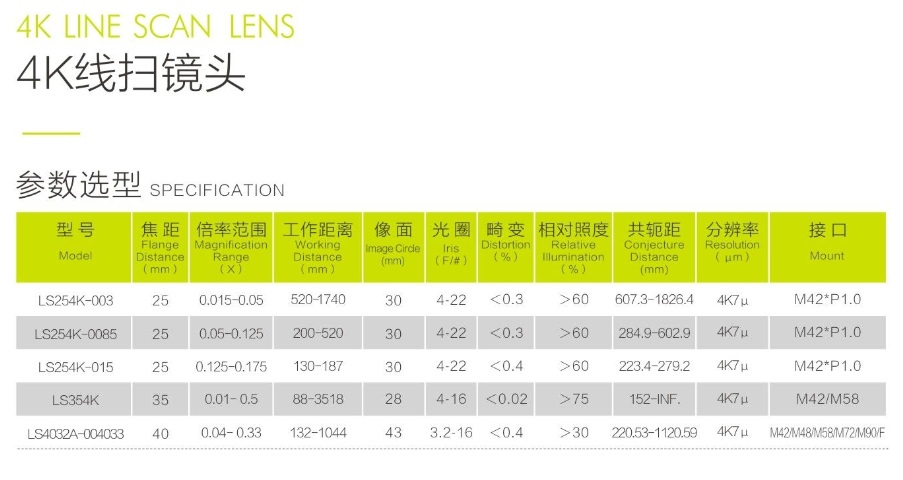

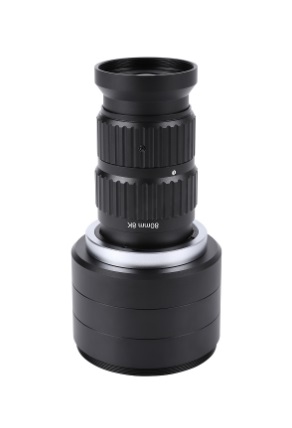

Line scan lens Details Specification List

Join the magnification loop, the best working distance from near to far Excellent optical performance, uniform imaging of center and edge Designed for compact line scan camera Applied to printing and packaging inspection.

Product Feature：
1. Add multiplier ring to ensure the best working distance from near to far;
2, focal length from 25mm to 80mm, can be flexibly selected according to different magnification;

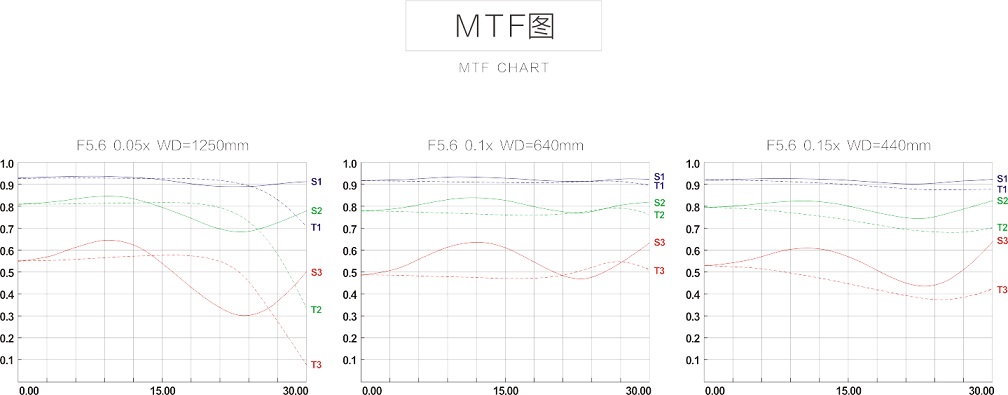

3, excellent optical performance, center and edge imaging uniform;
4, support maximum target surface up to 60mm, compatible with 2K/4K/8K line scan lens.

We have all kinds of type for your choose ! If you need more details drawing,Please feel free to contact us!
