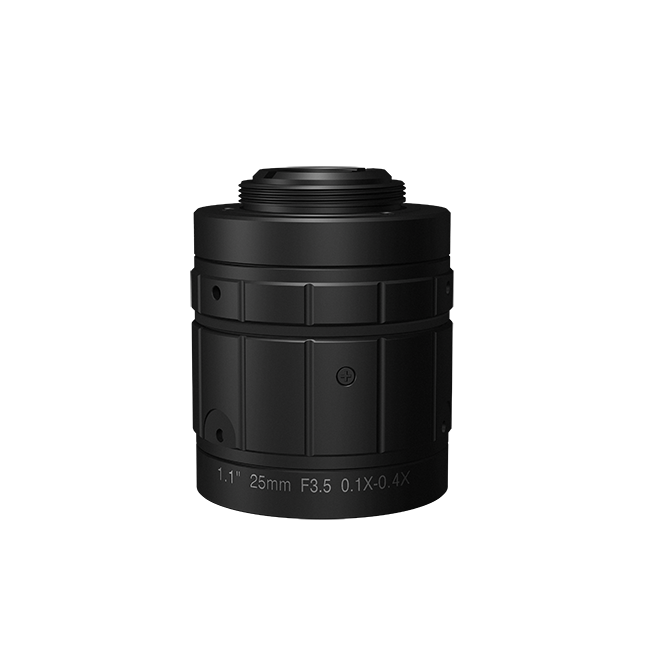

1.1 Inch 12MP Macro Lens Details Specification List

Our company's macro lens is a high-performance, high-resolution industrial lens with ultra-low distortion design and low distortion rate. It is widely used in industrial safety monitoring, high-precision measurement, detection, recognition and other industrial machine vision and image processing systems.

Optimized macro design, clear imaging with short working distance Low distortion, overall distortion <0.05%,Magnification range 0.1X-0.82X, suitable for high magnification positioning projects Supports up to 1.1 inch chips, compatible with 2/3 inch chips.

We have all kinds of type for your choose ! If you need more details drawing,Please feel free to contact us!

Email: [email protected]

Model	Flange Distance(mm)	Iris(F/#)	Magnification Range(X)	Working Distance(mm)	Distortion(%)	Relative IIIumination(%)	Conjecture Distande(mm)	Format Size(")	Mount	Download Details

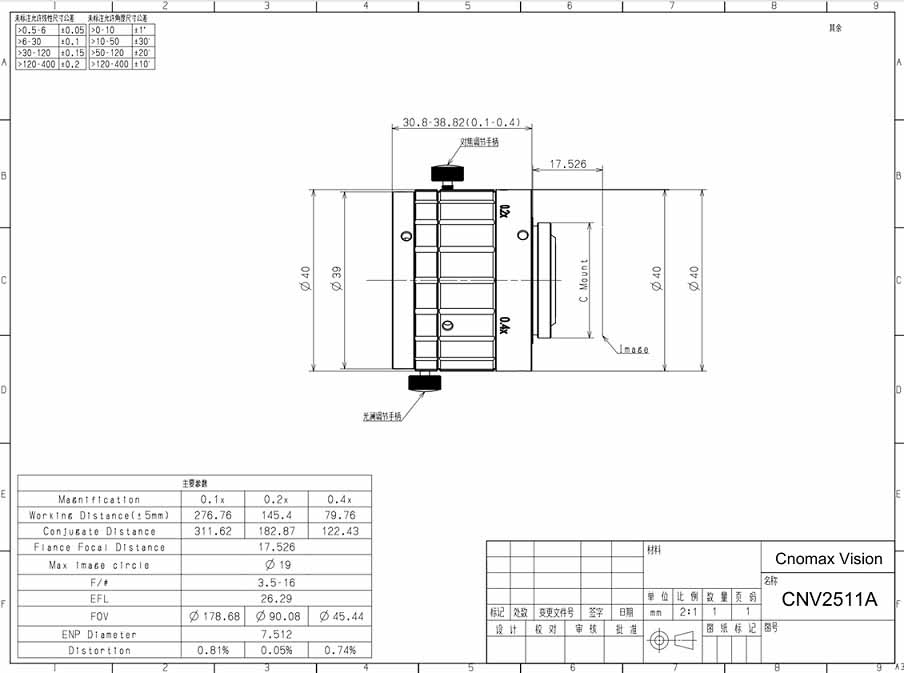

CNV2511A	25	3.5-16	0.1-0.4	61.6-250.79	<0.05	>90	122.43-311.62	1.1	c
CNV3511A	35	3.0-16	0.25-0.7	56.21-129.8	<0.03	>90	133.03-206.63	1.1	C
CNV5011A	50	2.8-16	0.46-0.82	97.14-127.17	<0.04	>90	193.17-233.20	1.1	c
CNV7511A	75	2.8-16	0.24-0.48	202.88-344.28	<0.03	>90	332.41-473.81	1.1	C
